Product Introduction

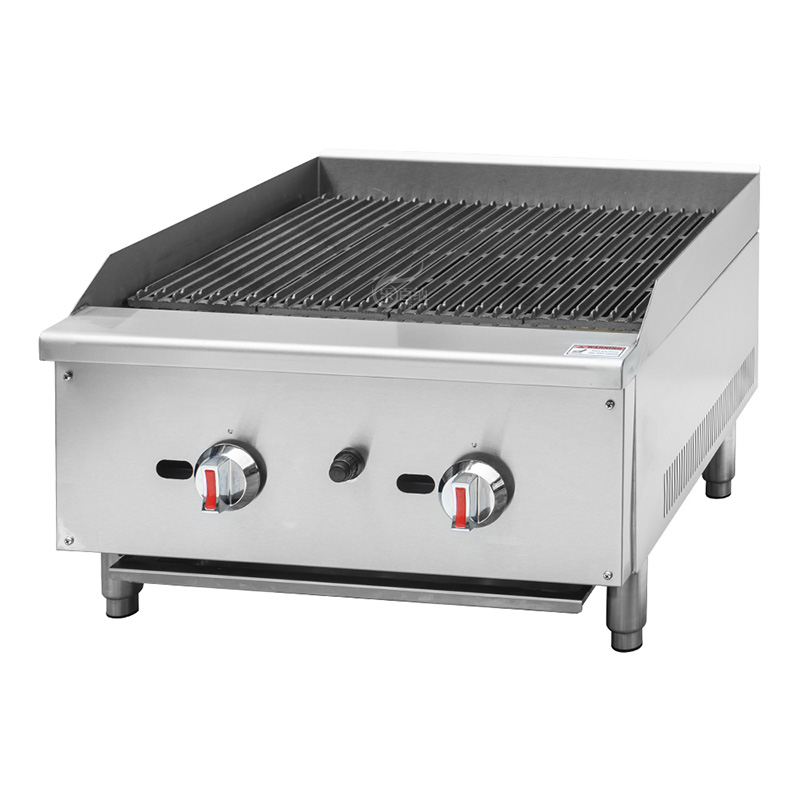

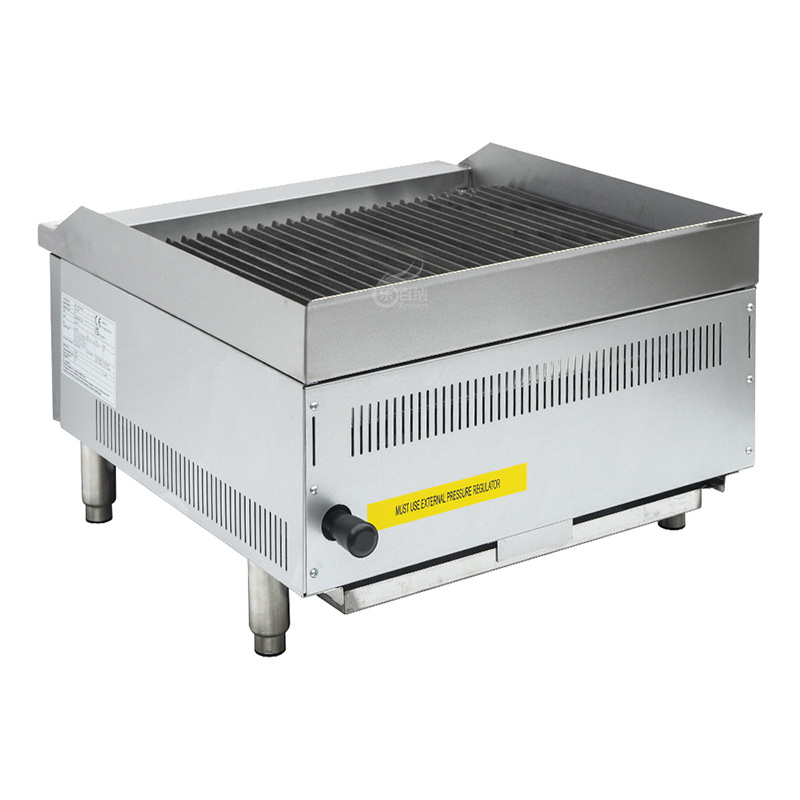

The ECB24S 24” Gas Radiant Charbroiler is an ideal cooking equipment for hamburgers, steaks and seafood, etc, adding a smokey flavor and grill marks to the food. It features two U-shape burners separately controlling two cooking zone and total power is 60,000 BTU. Thanks to the stainless steel adjustable legs which help the equipment to stand safely and can be adjusted to comfortable height. It comes with complete LP/NG conversion kit.
Brand:Rebenet
Item NO.:ECB24S
Product Origin:China
Shipping Port:Guangzhou / Shenzhen
Product Size:604 x 640 x 390 mm / 23.8 x 25.2 x 15.4 inch
Weight:54 kg / 119 lbs
Gas Type:Convertible
Number of Burners:2
Total BTU:60,000
Certification:ETL
Product Specification
* U-shape steel burner, each 30,000 BTU/hr
* To be controlled every 12" width
* Standby pilot for easy start
* Stainless steel adjustable heavy duty legs

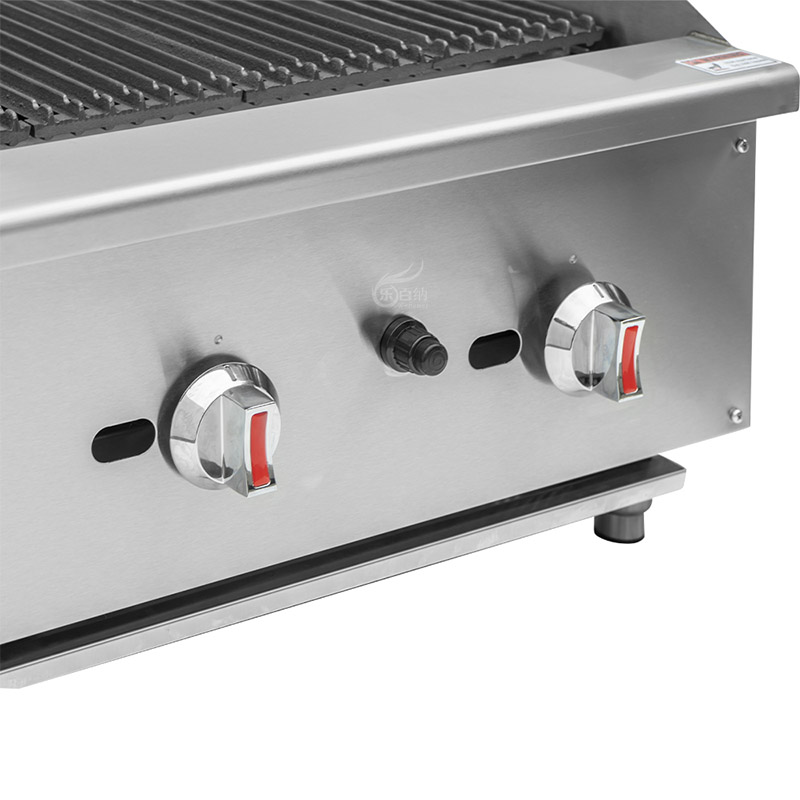

* Zinc alloy knob with chrome coating

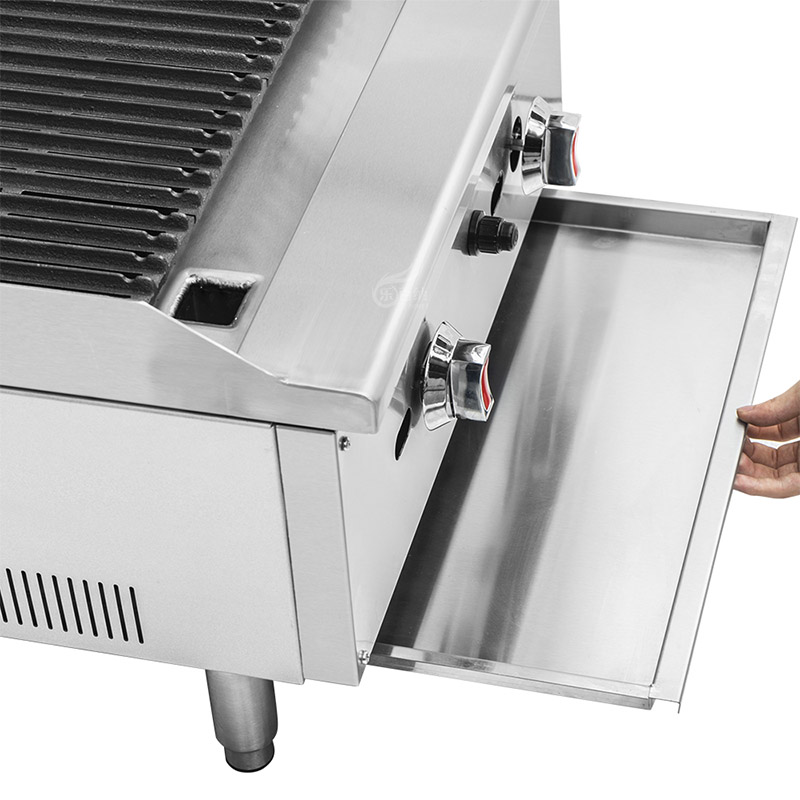

* Large oil collector at the bottom
* Easy conversion from natural gas to Propane or vice versa
* Stainless steel in the front, and galvanized sides and back
* Available in 16", 24", 36", 48" and 60" size

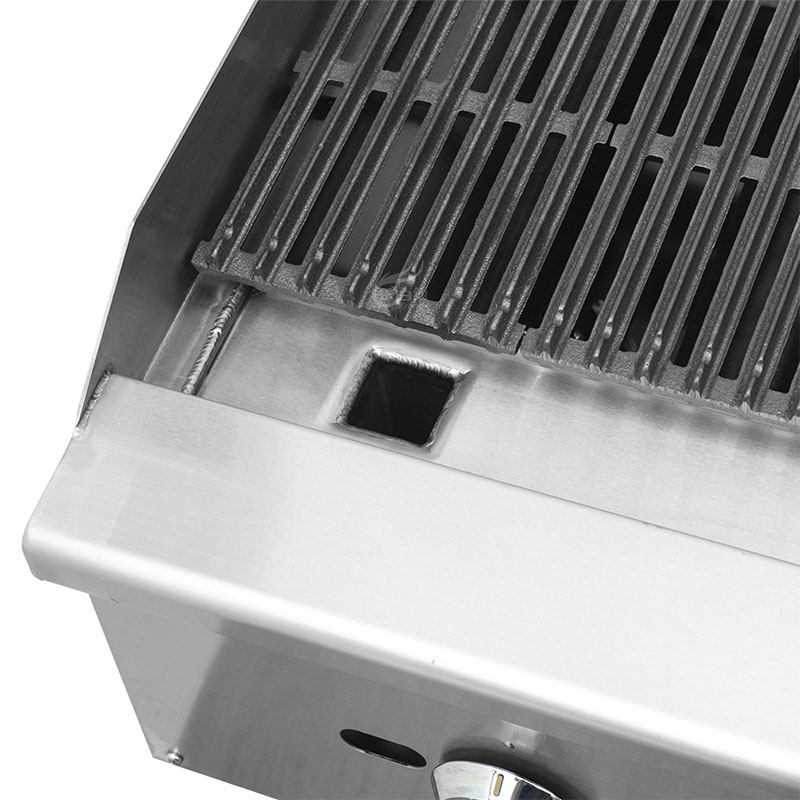

* Cast iron grate
* Manual control
| Model | Total Input (Btu/hr) | Product (W x D x H) |
Packing (W x D x H) | NW | GW |
| ECB16S | 30,000 | 404 x 640 x 390 mm 15.9 x 25.2 x 15.4 inch |
490 x 780 x 500 mm 19.3 x 30.7 x 19.7 inch |
49 kg 108 lbs |
57 kg 125 lbs |
| ECB24S |
60,000 | 604 x 640 x 390 mm 23.8 x 25.2 x 15.4 inch |
760 x 780 x 500 mm 29.9 x 30.7 x 19.7 inch |
54 kg 119 lbs |
70 kg 154 lbs |
| ECB36S |
90,000 | 904 x 640 x 390 mm 35.6 x 25.2 x 15.4 inch |
980 x 780 x 500 mm 38.6 x 30.7 x 19.7 inch |
74 kg 163 lbs |
95 kg 209 lbs |
| ECB48S |
120,000 | 1204 x 640 x 390 mm 47.4 x 25.2 x 15.4 inch |
1280 x 780 x 500 mm 50.4 x 30.7 x 19.7 inch |
98 kg 216 lbs |
135 kg 297 lbs |
| ECB60S |
150,000 | 1504 x 640 x 390 mm 59.2 x 25.2 x 15.4 inch |
1610 x 780 x 500 mm 63.4 x 30.7 x 19.7 inch |
122 kg 268 lbs |
167 kg 367 lbs |
